Shared Grid Controls


The grid system within multi-store environment can be controlled from a central location with the following options.
The Multi-store at the Home Office must be set to Enable Shared Grids.  If the Home Office option not selected to Share Grids, it does not matter what the individual store's share option is set to , the grid information will not be shared, period.

Within the Multistore application at the Home Office, check the Enable Shared Grids, if sharing at any of the stores is desired.


Where are the Share Grids Controls?

The Share Grid controls are located in the Multistore.exe application located designated TransActPOS server within the each store.

Store level configuration of the Multi-Store

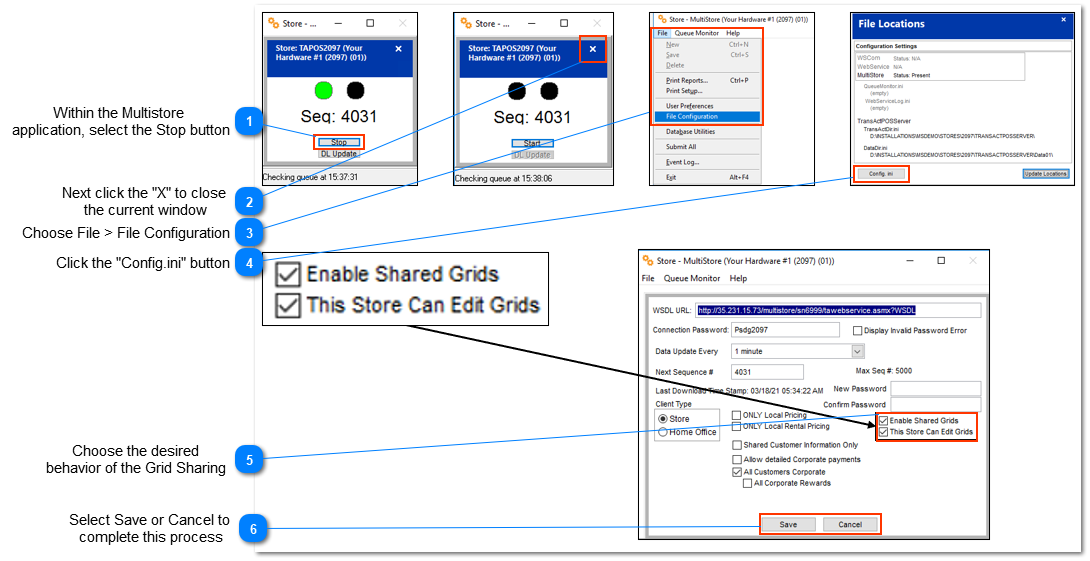

Shared Grid Controls
1

Within the Multistore
application, select the Stop button

1. Within the Multistore application, select the Stop button
2

Next click the "X" to close
the current window

2. Next click the "X" to close the current window
3

Choose File > File Configuration

3. Choose File > File Configuration
4

Click the "Config.ini" button

4. Click the "Config.ini" button

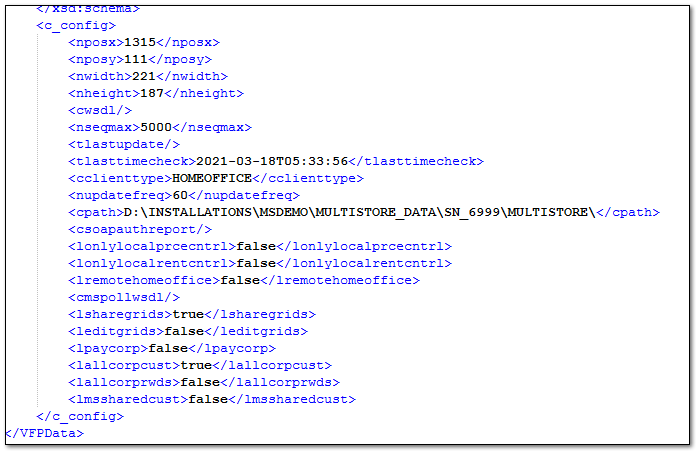

FYI: The configuration file read when opening the "Config.ini" is the Config.XML locate within the root folder of this store's installation.  So, this file would be found within X:\Multistore\config.xml and the bottom portion of this file contains the relatable fields as seen within the screen shot below:
Shared Grid Controls
5

Choose the desired
behavior of the Grid Sharing

5. Choose the desired behavior of the Grid Sharing

Total independent Grid Structure

  • Un-check "Enable Shared Grids"
  • Un-check "This Store Can Edit Grids"


    Shared Grid managed by another store

  • Check "Enable Shared Grids"
  • Un-check "This Store Can Edit Grids"


Controlling store of all other stores with Enabled Shared Grids Checked.

  • Check "Enable Shared Grids"
  • Check "This Store Can Edit Grids"
    Note: There should be only one (1) store chosen to the "This Store Can Edit Grids" option checked.
6

Select Save or Cancel to
complete this process

6. Select Save or Cancel to complete this process
Close out of the proceeding screens to return to the main menu.
Select Queue Monitor and then Launch to start the Multistore application anf return to normal operation.

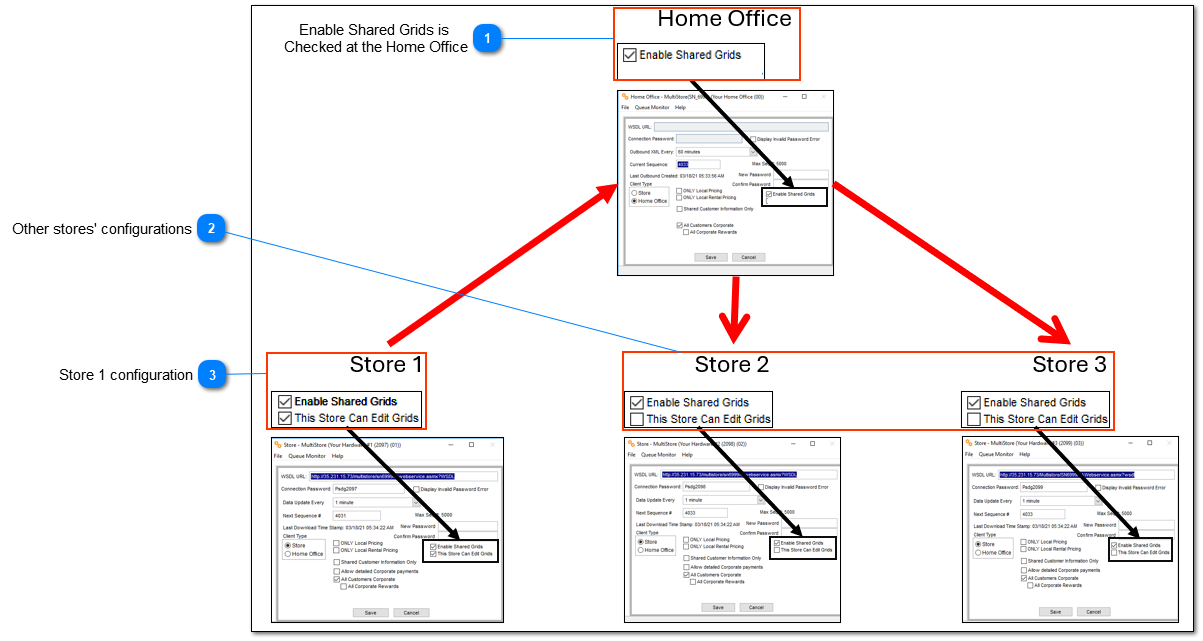

Shared Grid Controls


Store 1 controlling all other stores' grid structure

Shared Grid Controls
1

Enable Shared Grids is
Checked at the Home Office

1. Enable Shared Grids is Checked at the Home Office
If the Enable Shared Grids is not checked at the Home Office within Multistore.exe, the system will not distribute grid information regardless of the store's configuration.
2

Other stores' configurations

2. Other stores' configurations
For stores that will be only receiving the Grid Updates from the controlling store, only check the "Enabled Shared Grids" at these locations.  The "This Store Can Edit Grids" option will remain unchecked.
3

Store 1 configuration

3. Store 1 configuration
At Store 1, configure Multistore is indicated above.
In this example Store 1 will be editing the grid for all other stores.  Grid edits made at this store will be distributed automatically to other locations.

The controlling store, Store 1, will have both options checked as indicated above.
  • Check "Enabled Shared Grids"
  • Check "This Store Can Edit Grids"
